  WiNRADiO AX-48H Broadband Horn Antenna

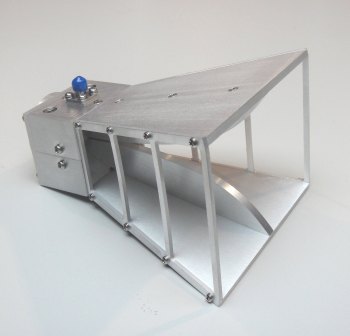

WiNRADiO AX-48H Broadband Horn Antenna The AX-48H antenna is a broad-band open-ended rectangular horn waveguide antenna, ideally suited for surveillance and monitoring, direction finding, EMI testing and other microwave applications.

The linearly polarized antenna features high and consistent gain over a wide frequency range, is lightweight and small-sized.

The antenna's consistent directional characteristics over the entire operational frequency range make it a perfect tool for monitoring and surveillance of point-to-point microwave communications in the most demanding applications.

The antenna is made of durable, high-quality aluminium material and comes with either N-type or SMA-type female connector (order codes AX-48H/N or AX-48H/S, respectively).

Suitable tripods and carrying cases are also available to assist in mobile applications.


AX-48H Broadband Horn Antenna

Technical Specifications
Type Broadband horn waveguide
Frequency range 2 - 18 GHz
Usage TX or RX
Forward gain 9.7 dBi (2 GHz)
9.9 dBi (4 GHz)
12.3 dBi (8 GHz)
12.6 dBi (12 GHz)
11.4 dBi (18 GHz)
Front to back ratio 20 dB min.
Beamwidth 24-52 @ 3 dB
VSWR 1:2.00 (2 GHz)
1:1.85 (6 GHz)
1:1.45 (12 GHz)
1:1.36 (18 GHz)
Polarization Linear
Impedance 50 ohm
Connector SMA (AX-48H/S) or N-type female (AX-48H/N)
Operating temperature -20 to 80C

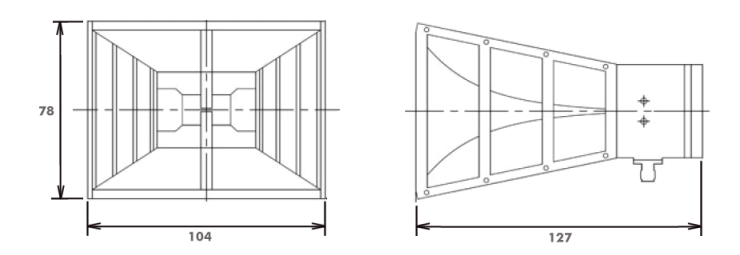

Size 104 x 78 x 127 mm
(4.09"x 3.07 x 5")
Weight 0.37 kg (0.82 lb)
