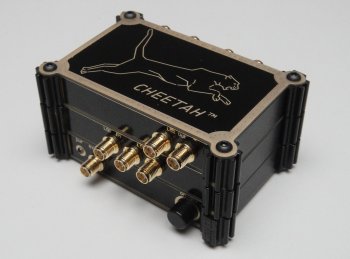

The WiNRADiO WR-G528e is a miniaturized, versatile, USB-interfaced high-performance receiver front-end with dual application capability.
A single WR-G528e module can be utilized as a compact, single-channel front-end suitable for fast signal intercept, acquisition and monitoring applications. When two identical modules are interconnected to share a common frequency reference (either internal or external),
they can form a basis of a dual-channel phase-coherent direction-finding system with excellent phase and amplitude matching characteristics.
The WiNRADiO WR-G528e is designed to be a front-end of choice for demanding Software-Defined Radio (SDR) applications
wherever an instantaneous IF bandwidth greater than 20 MHz, small size, low power and low cost are required. It can be deployed in fixed, land mobile,
or airborne installations.
Input frequency range 0.01-3000 MHz
Single or dual-channel phase-coherent applications
IF output 70 MHz
IF bandwidth 22 MHz
Excellent phase and amplitude matching
1 ppm frequency stability or 10 MHz external reference
Small size and weight
Low power consumption
High dynamic range
Fast tuning speed
USB 2.0 and RS-232 interface
